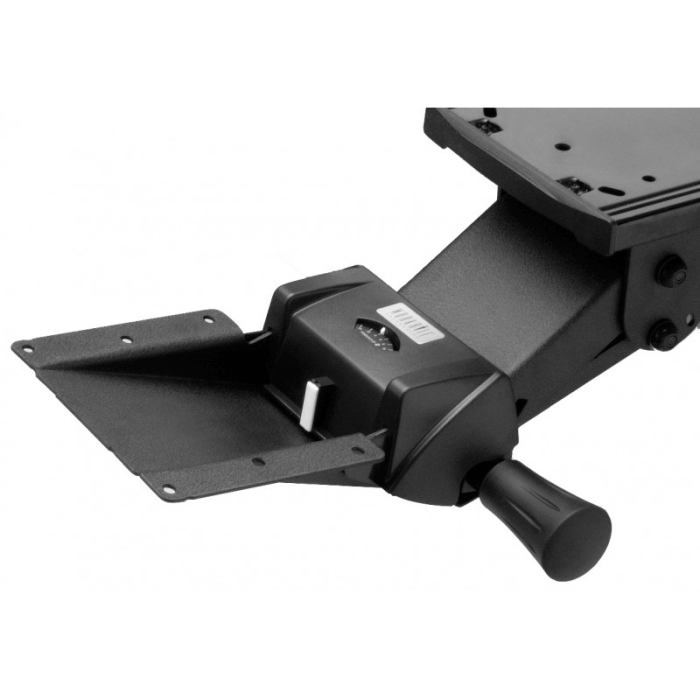

Workrite Pinnacle 2 Value Keyboard Arm
The Workrite Pinnacle2 Value arm provides a standard desk height range of adjustment allowing you to position your keyboard from 6" underneath the desktop to flush with the desktop and to be easily stored under the worksurface when not in use. The Pinnacle2 keyboard arm features Workrite's one touch Lift-N-Lock height adjustment technology.
All standard range arms feature:
- Independent height and angle controls
- Height range from flush to 6″ below worksurface
- Lift-N-Lock for one touch height adjustment
- Non-intrusive low profile track provides maximum knee clearance and smooth, consistent operation
- Easy Tilt with built-in Tilt Gauge, Tilt range: -15°to +10°
- 360° swivel from underneath track/mount point for easy positioning and storage
- Nylon track available in 17”, 20” or 22” sizes
- Optional swivel plate provides second swivel point underneath platform for added adjustability. Mounts between arm and platform to allow side-to-side adjustment of 9 1/8” and platform pivot/rotation of 45°
Adjustable keyboard arms and keyboard trays are recommended for anyone needing to lower the height of the keyboard/mouse. It allows the keyboard to be positioned in a more comfortable position and can greatly improve the ergonomic design of most desks.
If you are installing on a 90 degree angle, consider a corner maker: 179CR; 179CCD-1-1/2; 179ACD
Note: All keyboard arms require a keyboard platform - choose from our platform options or supply your own.
Manufacturer: |
Workrite Ergonomics |
|
Height Adjustment: |
Independent Lift-N-Lock Height adjustment technology |
|
Tilt Adjustment: |
Independent Tilt handle provides full 25° tilt range +10°/-15° |
|
Height Range: |
Flush with worksurface to 6" below |
|
Track: |
Standard 22" Teflon Glide track (Optional 17", 20"), Low Profile design |
|
Base Swivel: |
360° provides easy positioning and storage |
|
Material: |
Steel |
|
Finish: |
Black Powder Coat |
|
|
|
|
Workrite Ergonomics Keyboard Arm Application Considerations.pdf
Standard Pinnacle2 Value height and angle adjustments:
Optional Swivel Plate - Provides more side-to-side adjustments:
- Defects caused by improper installation
- Products subject to improper use and conditions
- Customer modifications to the product
